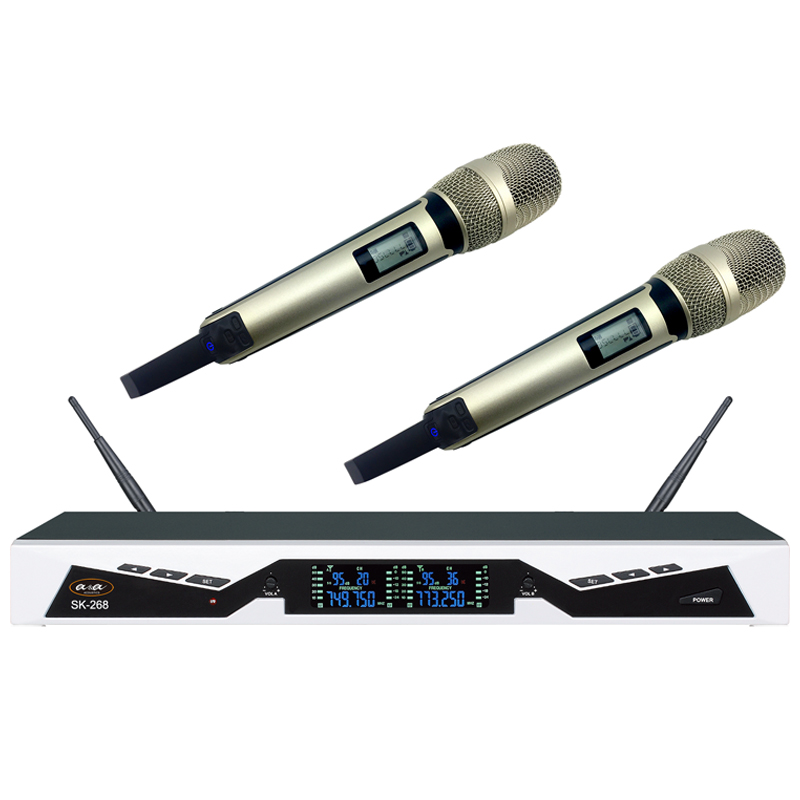

SK268

SK268

Description

»320selectable UHF frequencies and True Diversity reception for interference-resistant operation.
»THe transmitters offer durable,magnesium bodies,soft-touch controls.
»Press the“AFS”(Auto Frequency Selection)button 3S,the receiver will auto-scan,lock on to an open, interference-free frequency.

»Press[IR]button to upload automatically the receiver frequency to the transmitter.

»PLL(Phase Lock Loop frequency control) design ensures transmission reliability,“Noise Lock”squelch effectively blocks stray RF.
»EIA-standard metal 1-rack receiver chassis,offering programmable features,with high-visibility LCD display.
»Battery life is twice as common,up to 15 hours.
»Incredible audio quality outstandingly reliable performance for artists, broad- casters, other demanding audio environments.

Specifications
Receiver

Main Frame Size EIA STANDARD 1 U
Channels Dual Channel
Frequency Stability ±0.0005%,Phase Lock Loop frequency control
Carrier Frequency Range UHF 740-820MHz
Modulation Mode FM
Operating Range 100M typical (in open space)
Oscillation PLL synthesized
Sensitivity 5dB μV, S/N>60dB at 25 deviation
Band Width 40MHz
S/N
>108 dB
T.H.D.
<0.4% @ 1 KHz
Integrated frequency response
65Hz~18kHz ± 3dB
Power Supply
100-240V AC50/60Hz,10W
Weight
4.3KG
Wireless Microphone

Carrier Frequency Range
UHF 740-820MHz
Oscillation
PLL synthesized
Harmonic radiation
< -63dBm
Bandwidth
80MHz
Max.Deviation Range
±45KHz
Microphone Element
Cardioid Dynamic
RF Power Output
RF Power Output: 8mW ; 8mW / 15mW(Selectable)
Battery
AA×2
Current Consumption
90 mA
Battery Current / Life
Almost 6 Hours
Dimension(mm)
265mm(L)×56mm(diameter)
Applications

The SK268 is designed for use in fixed installations and touring projects such as Church, Multi-function hall, live show, concert etc. audio venues.
