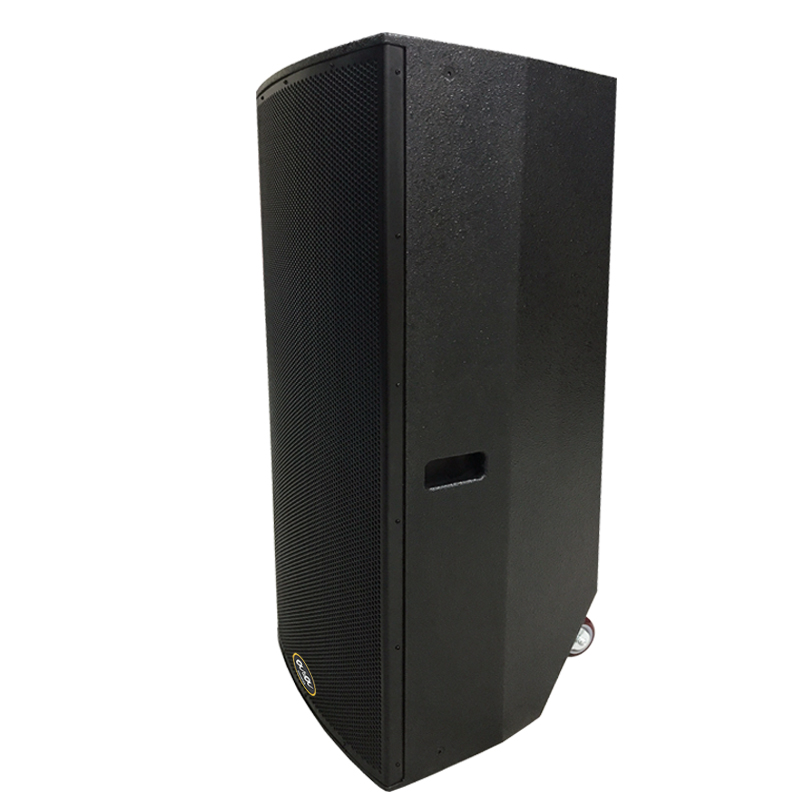

CF252

CF252

Description

CF252 is a high-volumn punch and ultra-wide frequency response two way full range loudspeaker system which is based on the custom-made premium units to the construction and the latest acoustical theory, CF252 is designed for high quality entertainment, touring and high performance fixed installations multi-purpose applications.

The CF252 is a passive two way system, the low section included double customized power 15" cone drivers, high section included a 3" compression driver loaded on a special design rotatable constant directivity 90°(H) x 60°(V) horn which offer a high SPL satisfy solution to any size of venues sound reinforcement.

The CF252 adopted the advanced crossover network with HF protection that optimize frequency response deliver punchy bass, remarkable vocal presence, clarity and high feedback stability.

The CF252 enclosure construction is made of the 18 mm birch plywood finished by layers of environment-friendly water-based textured paint and internally braced, whatever CF252 preset (6) 3/8-inch threaded suspension points, or the recessed handles on top and the sides, or from the rubber feets to the wheels on the bottom, the CF252 always providing a very portable system for your medium throw venues and finished by one people.

Specifications
Frequency range 50Hz to 18 kHz
Sensitivity 100dB SPL
Max.SPL 133 dB SPL
Nominal impedance
Coverage(H°xV°)
H°: 90°, V°: 60°
Components
LF: 2x15“ cone drivers; HF: 1x3"compression driver
Power rated(AES) 1000W
Color
Black, other colors on requirement
Cabinet
18mm birch plywood
Connectors
2 x 4-pin Neutrik Speakon (NL4)
Suspension (6) 3/8-inch threaded inserts
Dimensions(HxWxD) 1137 x 522 x 510 mm
Net Weight
53kg
Applications

Thanks to the special designed rotable horn loaded technologies and customed-made premium components used in CF252, and its power which is ideal for use in medium power of high quality distributed sound applications. like theatres, houses of worship, nightclubs, multi-purpose venues or as fill loudspeakers on the band show on stage especially in larger indoor or outdoor sound systems.
