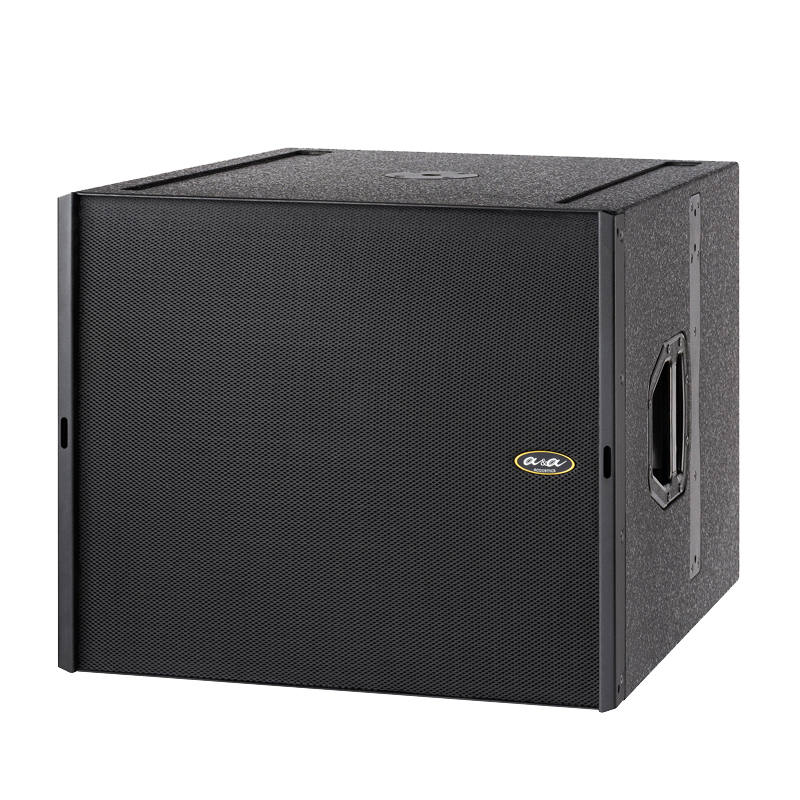

LA18SR

LA18SR

Description

LA18SR is a compact companion subwoofer system to the LA210 which is based on the custom-made premium units to the construction and the latest acoustical theory, MB18S is designed for offering low frequencies reinforcement for high quality entertainment, touring and high performance fixed installations bass extension multi-purpose applications.

The LA18SR is a passive subwoofer system, the low section included a customized power 18"(4"voice coil) transducer front loaded in a special design optimized acoustic enclosure which offer a satisfy solution to any size of venues sound reinforcement.

The LA18SR is the companion flyable subwoofer to LA210 line arrays, together with them, it can build a powerful system for any scale of indoor/outdoor audio events.



Specifications
Frequency range 35Hz to 250 Hz
Sensitivity 103dB SPL
Max.SPL 135 dB SPL
Nominal impedance
Coverage(H°xV°) ------
Components
LF: 1x18“ bass driver
Power rated(AES) 800W
Color
Black, other colors on requirement
Cabinet
18mm birch plywood
Connectors
2 x 4-pin Neutrik Speakon (NL4)
Rigging
4 points rigging system
Dimensions(HxWxD) 488 x 580 x 671 mm
Net Weight
43kg
Applications

Thanks to the special designed cabinet construction and customed-made premium components used in LA18SR, and combine with LA210 line arrays, which is ideal for use in medium power of bass extension applications, like high performance fixed installation in theatres, stadium, sport hall and touring.
