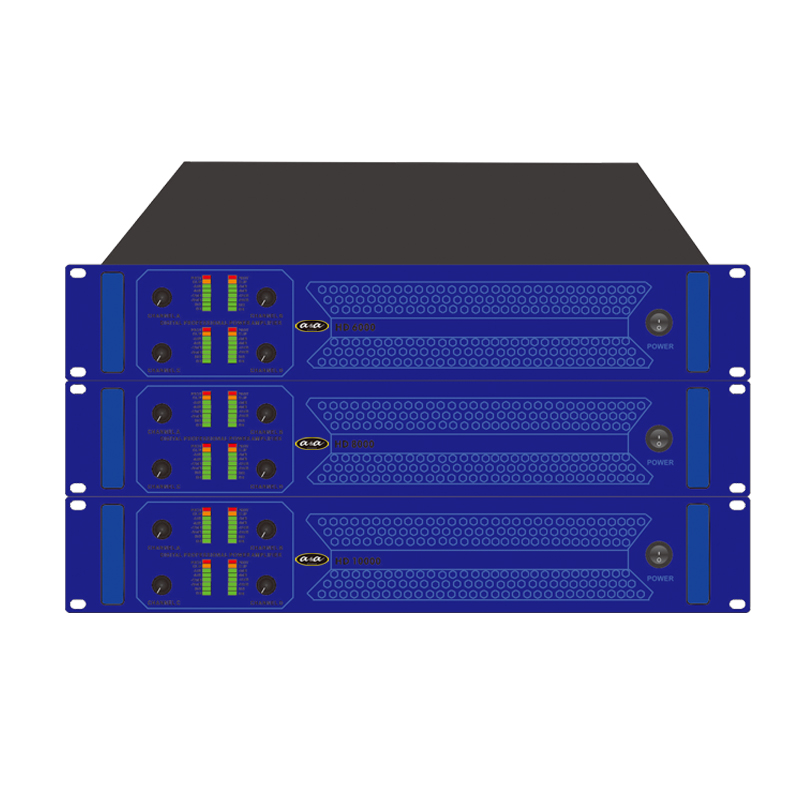

The HD 2U four channels series has been designed as a powerful four channels power amplifier featuring light weight, compact, high power output and high efficiency.
The HD series adopted high-performance digital power management technology and double Regulated SMPS power supplies have been further improved with universal mains operation onfrom 90-260V, elimination the need for market specific power supplies and related reliability issues.
The HD series adopted innovative double Power Factor Correction(PFC) technology together with double R-SMPS power supplies allow to drawn current from the mains in a more efficient way translating to a more stable and higher power outputs when four channels working at the same time with a lower power consumption and improved sound quality.
Frequency response (±0.3dB 1W@8 ohms) | 20Hz to 20 kHz |
Max output@1KHz,0.01% THD+N | 4x1000W/8Ω; 4x1500W/4Ω;4x1800W/2Ω |
|
2x2800W/8Ω;2x3500W/4Ω(Bridge mode) |
THD at full rated power@8 ohms/1KHz | <0.03% |
Input sensitivity | 0.775V/1V/32dB(selectable) |
Input impedance |
Balanced >20kΩ, Unbalanced>10kΩ |
Damping factor (at 10-400Hz/8 ohms) |
>500 |
Signal-to-Noise Ratio (A weighted) | >106dB |
Protection |
Shorted loaded;overloaded etc. |
Digital voltage limit factor: |
0.775-8V |
Input Connectors |
8 x XLR3 |
Output Connectors |
4 x Neutrik Speakon NL4MP |
Cooling |
8-temperature-controlled fans |
Work mode |
Stereo/Parallel/Bridged(selectable) |
Work voltage |
AC 90-260V / 50-60Hz |
Display | ------ |
Dimensions(HxWxD) |
483 x 88 x 320 mm |
Net Weight |
12kg |
