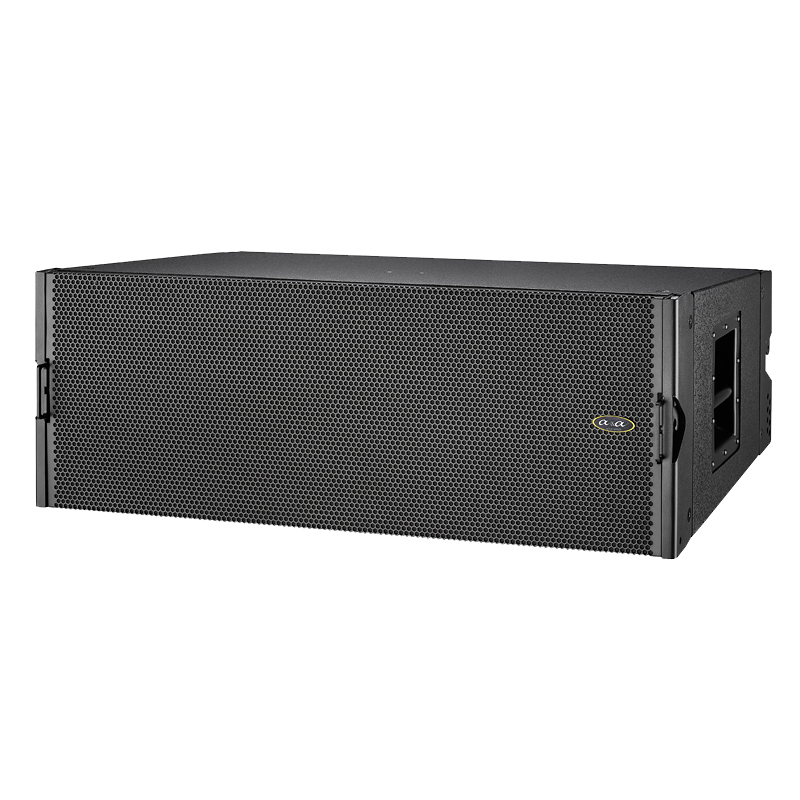

LA212 is a high performance line source array system which is designed based on the custom-made premium units to the construction and the latest acoustical theory especially follow the line source array rules.
We all know that a true line source array generate an homogenous acoustic field on all its coverage area, in all its frequency range and is free of interference problems.
The LA212 is a passive two way system, the low section included double customized 12" (3"voice coil) powerful cone drivers, high section included double 2"(51mm) compression driver loaded a special design waveguide on a optimized acoustic enclosure which offer a satisfy solution to any size of venues sound reinforcement.
The cabinet construction is made of the 18 mm birch plywood with internal-reinforced include 2 integrated handles on the sides and have 4-points aluminum rigging system is installed on the sides of the cabinet, flying up to 16 elements.
Frequency range | 60Hz to 18 kHz |
Sensitivity | 102dB SPL |
Max.SPL | 137 dB SPL |
Nominal impedance | LF: 2 x 8Ω ; HF: 16Ω |
Coverage(H°xV°) |
H°: 90°, V°: 0°-10° |
Components |
LF: 2x12“ cone drivers; HF: 2x2"compression driver |
Power rated(AES) | 800W / 160W |
Color |
Black, other colors on requirement |
Cabinet |
18mm birch plywood |
Connectors |
2 x 4-pin Neutrik Speakon (NL4) |
Rigging |
4 points flying system |
Dimensions(HxWxD) |
375 x 1061 x 555 mm |
Net Weight |
58kg |
