PX15

PX15

Description

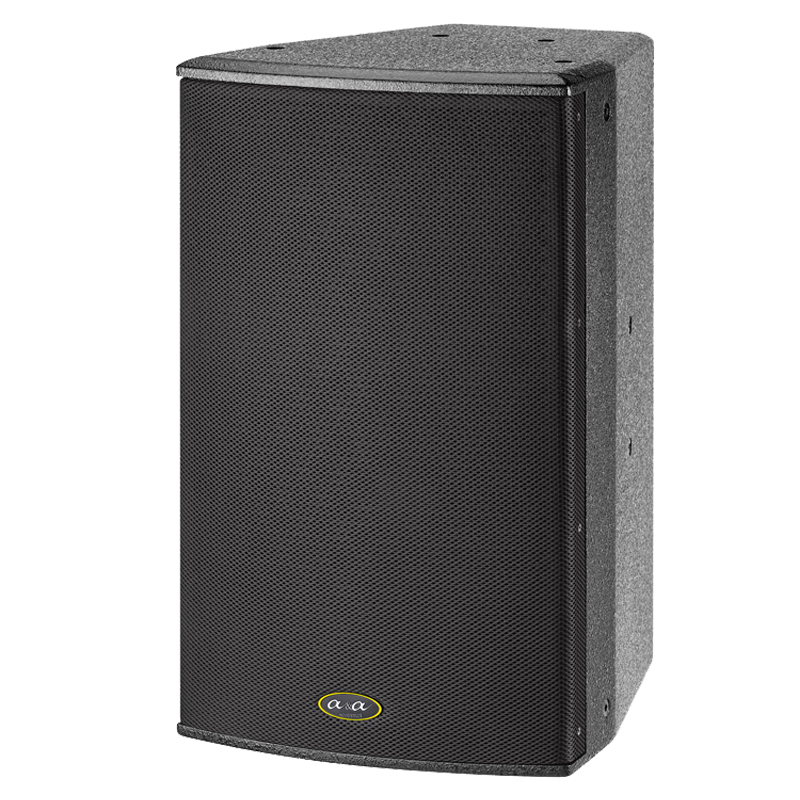

PX15 is a compact two way loudspeaker system which is based on the custom-made premium units to the construction and the latest acoustical theory especially special rotable horn loaded technology, PX15 is designed for high quality entertainment and high performance fixed installations applications.

The PX15 is a passive loudspeaker system, the low section included a customized power 15" (3"voice coil) cone driver, high section included a 2"(51mm) compression driver loaded on a special designed and can be rotatable 90° waveguide on a optimized acoustic enclosure which offer a satisfy solution to any size of venues sound reinforcement. PX15 can be 90° rotatable adjustment in high frequency to meet coverage for any sizes of venues.

The cabinet construction is made of the 18 mm birch plywood with internal-reinforced include one 35mm pole mount socket on the bottom to accept standard loudspeaker stand and 2 recessed handles on the sides are provided for easy flying and carrying, internal M8 rigging points for a very convenient rigging loudspeaker system.

Specifications
Frequency range 60Hz to 18 kHz
Sensitivity 98dB SPL
Max.SPL 127 dB SPL
Nominal impedance
Coverage(H°xV°)
H°: 90°, V°: 60°
Components
LF: 1x15“ cone driver; HF: 1x2"compression driver
Power rated(AES) 400W
Color
Black, other colors on requirement
Cabinet
18mm birch plywood
Connectors
2 x 4-pin Neutrik Speakon (NL4)
Rigging
special rigging system
Dimensions(HxWxD) 688 x 440x 396 mm
Net Weight
25.5kg
Applications

Thanks to the special designed rotable horn loaded technologies and customed-made premium components used in PX15, and its power, easy rigging system which is ideal for use in medium power of high quality distributed sound applications. like theatres, houses of worship ,nightclubs, multi-purpose venues.
