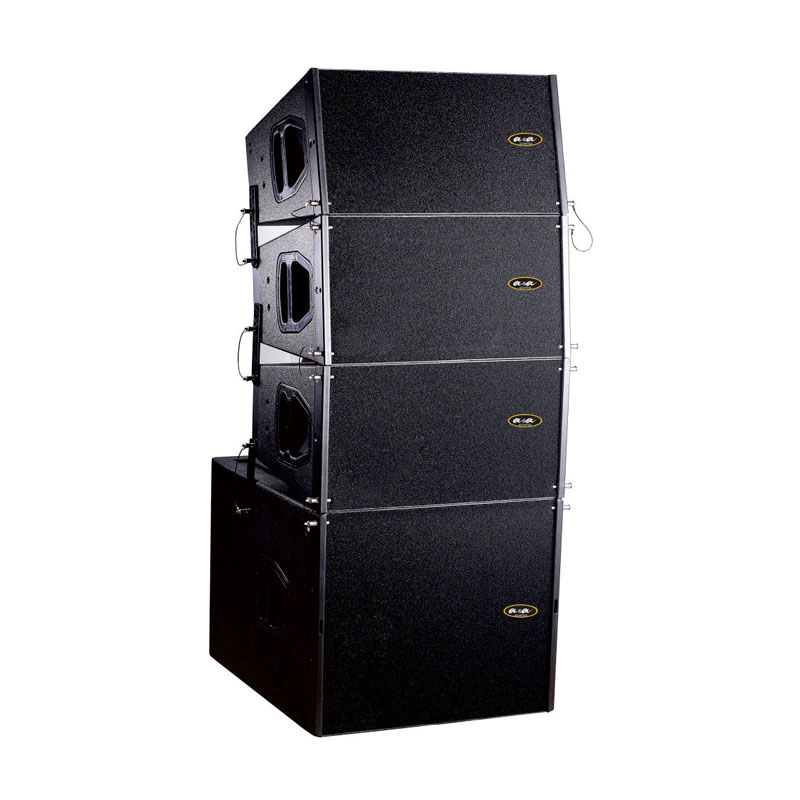

LA208

LA208

Description

LA208 is a high performance line source array system which is designed based on the custom-made premium units to the construction and the latest acoustical theory especially follow the line source array rules.

We all know that a true line source array generate an homogenous acoustic field on all its coverage area, in all its frequency range and is free of interference problems.

The LA208 is a passive two way system, the low section included double customized 8" (2.5"voice coil) powerful cone drivers, high section included a 2"(51mm) compression driver loaded a special design waveguide on a optimized acoustic enclosure which offer a satisfy solution to any size of venues sound reinforcement.

The cabinet construction is made of the 18 mm birch plywood with internal-reinforced include 2 integrated handles on the sides and have 4-points aluminum rigging system is installed on the sides of the cabinet, flying up to 16 elements.


Specifications
Frequency range 80Hz to 18 kHz
Sensitivity 100dB SPL
Max.SPL 133 dB SPL
Nominal impedance LF: 2 x 8Ω ; HF: 16Ω
Coverage(H°xV°)
H°: 120°, V°: 0°-10°
Components
LF:  2x8“ cone drivers; HF: 1x2"compression driver
Power rated(AES) 400W / 80W
Color
Black, other colors on requirement
Cabinet
18mm birch plywood
Connectors
2 x 4-pin Neutrik Speakon (NL4)
Rigging
4 points flying system
Dimensions(HxWxD) 252x 650x 385 mm
Net Weight
22kg
Applications

Thanks to the true line source technologies and customed-made premium components used in LA208, and its power, easy rigging system which is ideal for use in medium power of applications, like high performance fixed installation in theatres, stadium, sport hall and touring.
