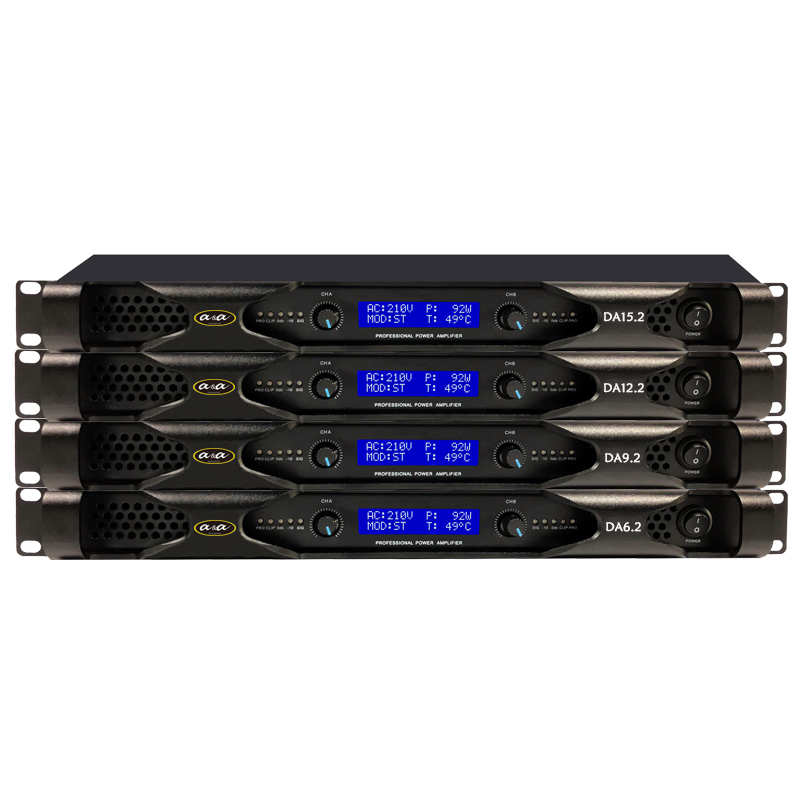

PD 15.2 1U with Display

Description

The PD15.2 professional digital power amplifier is a premium quality, compact size, high power amplifier designed for live performance use as well as for permanent installations. Thanks to the high efficiency of the balance output circuit, dramatically reduce power distribution demands compared to older high power amplifiers.

The PD15.2 is based on the Class D circuitry and reliable power supply for power effieciency and high quality sound performance.

Specifications

Frequency response (±0.3dB 1W@8 ohms)	20Hz to 20 kHz
Max output@1KHz,0.01% THD+N	2x1000W/8Ω; 2x1500W/4Ω
THD at full rated power@8 ohms/1KHz	<0.03%
Input sensitivity	1V
Input impedance	Balanced >20kΩ, Unbalanced>10kΩ
Damping factor (at 10-400Hz/8 ohms)	>600
Signal-to-Noise Ratio (A weighted)	>103dB
Protection	Shorted loaded; overloaded power supplies etc.
Digital voltage limit factor:	0.775-8V
Input Connectors	2 x XLR3
Output Connectors	2 x Neutrik Speakon NL4MP
Cooling	Rear-to-front, 3-stage-fans
Work mode	Earthed bridge circuit
Work voltage	AC 220-240V / 50-60Hz
Display	2.5"LCD
Dimensions(HxWxD)	483 x 44 x 250 mm
Net Weight	4.3kg

Applications

Based on the high efficiency of the balance output circuit design and reliable quality components, PD15.2 deliver stable high power output for running main systems, monitors and subwoofers.
