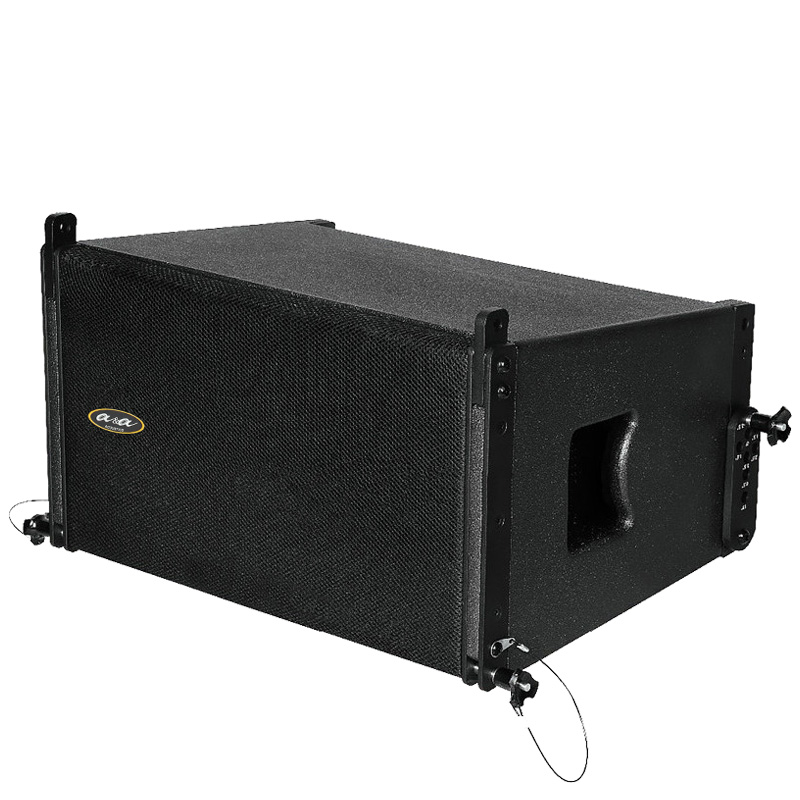

The LA110 is a high quality compact vertical line source array system. The specified conception is based on the technology of LCW™(Linear Coupled Waveguide) .
The LA110 shall be an passive or active 2-way loudspeaker system, it contains a high power 10-inch mid-low frequency cone driver and two 1.75-inch voice coil compression titanium drivers with special optimised waveguide together fixed on a 120°(H) X 10°(V) waveguide. As a full range system, the frequency response shall be 70 Hz to 18 kHz (±3dB).
The cabinet shall be installed using a dedicated rigging bumper and accessories for an easy, safe and convenient rigging system.
The cabinet constructed of 18 mm birch plywood with internal braces include 2 recessed handles and have 4-points aluminum rigging system is installed on the sides of the cabinet, flying up to 16 elements.
The mechanical and acoustical design of the LA110 cabinet enables vertical splay angles to be set between 0° and 10°.
The cabinet is finished in excellent black impact resistant textured paint and the front of the cabinet shall be protected by a rigid mental grill covered with replaceable acoustically transparent silks.
Frequency range | 70Hz to 18 kHz |
Sensitivity | LF:100dB SPL;LF:110dB SPL |
Max.SPL | LF:133dB SPL;LF:138dB SPL |
Nominal impedance | LF: 16Ω ; HF: 16Ω |
Coverage(H°xV°) |
H°: 120°, V°: 0°-10° |
Components |
LF: 1x10“ cone drivers; HF: 2x1.75"compression drivers |
Power rated(AES) | 300W / 160W |
Color |
Black, other colors on requirement |
Cabinet |
18mm birch plywood |
Connectors |
2 x 4-pin Neutrik Speakon (NL4) |
Rigging |
4 points flying system |
Dimensions(HxWxD) |
275x 500x 355 mm |
Net Weight |
23kg |
