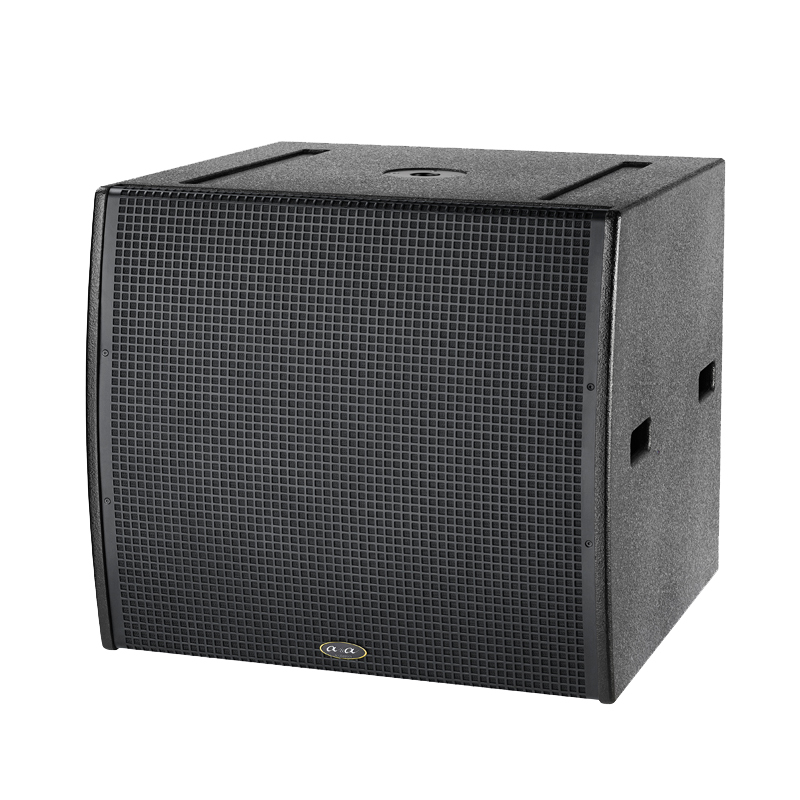

MB15S is a compact subwoofer loudspeaker system which is based on the custom-made premium units to the construction and the latest acoustical theory, MB15S is designed for high quality entertainment, touring and high performance fixed installations bass extension multi-purpose applications.
The MB15S is a passive subwoofer system, the low section included a customized power 15"(3"voice coil) transducer front loaded in a special design optimized acoustic enclosure which offer a satisfy solution to any size of venues sound reinforcement.
The MB15S is the companion subwoofer to a&a full range loudspeakers and line arrays, together with them, it can build a powerful system for any scale of indoor/outdoor audio events.
Frequency range | 40Hz to 250 Hz |
Sensitivity | 101dB SPL |
Max.SPL | 131 dB SPL |
Nominal impedance | 8Ω |
Coverage(H°xV°) |
------ |
Components |
LF: 1x15“ bass driver |
Power rated(AES) | 500W |
Color |
Black, other colors on requirement |
Cabinet |
18mm birch plywood |
Connectors |
2 x 4-pin Neutrik Speakon (NL4) |
Rigging |
------ |
Dimensions(HxWxD) |
450 x 600 x 498 mm |
Net Weight |
32kg |
