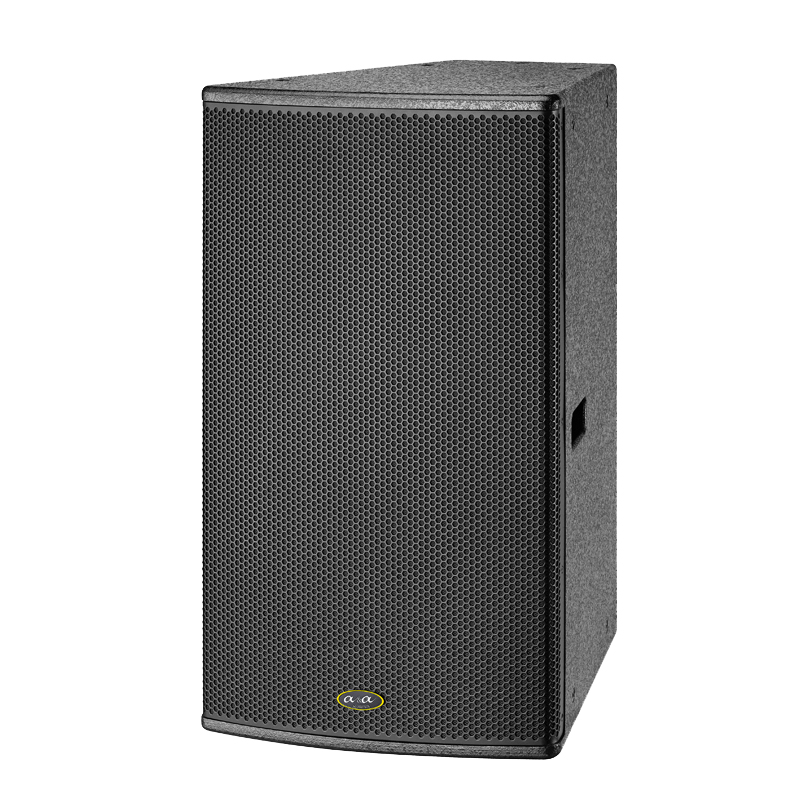

AH1502 is a high efficiency coupling arrayable loudspeaker system which is based on the custom-made premium units to the construction and the latest acoustical theory especially special coupling horn loaded technology, AH1502 is designed for the medium throw applications, ideal for Nightclub、Performance art center、Multi-function hall etc. mid-sized venues sound reinforcement.
The AH1502 is a passive two way system, the low section included a customized power 15" (3"voice coil) cone driver, high section included a 2"(51mm) compression driver loaded a special design waveguide on a optimized acoustic enclosure which offer a satisfy solution to any size of venues sound reinforcement.
The cabinet construction is made of the 18 mm birch plywood with internal-reinforced include 2 recessed handles on the sides. AH1502 can be deployed in tightly-packed array clusters to deliver horizontal coverage, they can also be used vertically when necessary.
Frequency range | 60Hz to 18 kHz |
Sensitivity | LF: 100dB SPL; LF: 110dB SPL |
Max.SPL | 133 dB SPL |
Nominal impedance | LF: 8Ω ; HF: 16Ω |
Coverage(H°xV°) |
H°: 90°, V°: 40° |
Components |
LF: 1x15“ cone driver; HF: 1x2"compression driver |
Power rated(AES) | 500W / 80W |
Color |
Black, other colors on requirement |
Cabinet |
18mm birch plywood |
Connectors |
2 x 4-pin Neutrik Speakon (NL4) |
Rigging |
special rigging system |
Dimensions(HxWxD) |
760 x 448x 413 mm |
Net Weight |
32kg |
Thanks to the special designed coupling horn loaded technologies and customed-made premium components used in AH1502, and its power, easy rigging system which is ideal for use in medium power of applications, like high performance fixed installation in theatres, stadium, sport hall and touring, especially center fill and side fill in large-scale systems.
